上海金泰工程機械有限公司
45 Luopu Road, Anting, Shanghai 400-820-8326

PRODUCT

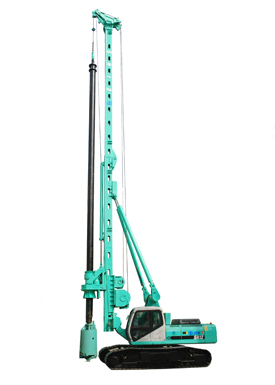

SH25

 SH25 Hydraulic Rotary Drilling Rig is a new type of piling machine with the big triangle structure, which combines the new technology and process of the modern hydraulic piling machinery. So, its performance reaches or exceeds the advanced level of the same products in the world, meanwhile, the whole machine with easy operation and high working efficiency is capable of digging deep pit due to its many international brand key accessories. SH25 is widely applied to the construction of high buildings, bridge, water conservancy and so on and especially proper for the complex geological layers containing much water. SH25 is an ideal equipment for all kinds foundation construction.

Type   SH25
Drilling tower Crowd wich type Crowd cylinder type
Height of tower(mm) 23000  23000
Weight of base machine
(without drilling tools) (kg)
64500 64000
Rotary head
Rotary torque(kN.m) 250   250
Rotary speed(r/min) 5-30 5-30
Crowd system
Pressure force(kN) 260  200
Pulling force(kN) 260 260
Main winch
Single line pull(kN) 200 200
Rope diameter(mm) 26 26
Line speed max.(m/min) 60 60
Auxiliary winch
Single line pull(kN) 75 75
Rope diameter(mm) 18 18
Line speed max.(m/min) 50 50
